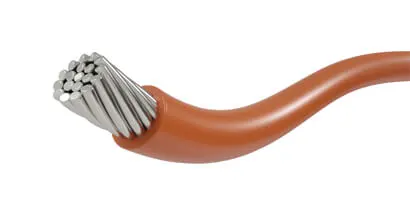

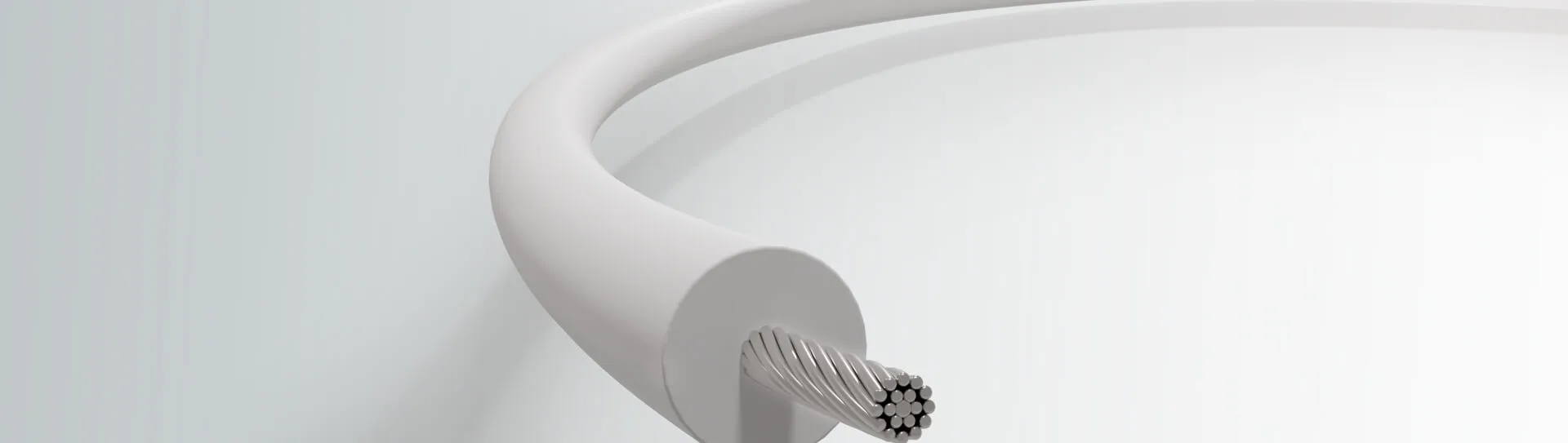

250°C high voltage wires and cables stand out as exemplars of robust engineering, designed to withstand extreme temperatures while maintaining optimal performance. Engineered to operate in environments where conventional cables would falter, these specialized components are integral to industries ranging from aerospace and automotive to energy production and beyond.
Operating Temperature: -65°C to +250°C
Operating Voltage: 5KV-50KV
Insulation: PFA
Approval: UL
Imaging Systems (MRI and CT Scanners):
High voltage cables are used in magnetic resonance imaging (MRI) and computed tomography (CT) scanners to transmit power and signals to sensitive imaging components.
These cables must maintain signal integrity and withstand high magnetic fields and thermal loads generated by the equipment.
Electrosurgical Devices:
Cables in electrosurgical devices, such as cautery units and electrosurgical generators, deliver high-frequency electrical currents for cutting, coagulating, and cauterizing tissues.
High temperature cables are essential to handle the electrical power and maintain insulation integrity during surgical procedures.
Patient Monitoring Systems:
Cables in patient monitoring systems (e.g., ECG, EEG, and pulse oximetry) transmit vital signals from sensors to monitoring equipment.
The high temperature rating ensures reliable signal transmission and electrical safety in clinical settings.
Medical Lasers and Light Sources:
High voltage cables are used in medical lasers and light sources to deliver high-power optical radiation for surgical and therapeutic applications.
These cables must withstand thermal stresses and optical radiation without compromising performance.
Biocompatibility is a critical consideration for high voltage wires and cables used in medical applications, particularly those that may come into contact with patients or biological tissues. While 250°C high voltage wires and cables are primarily designed for their temperature and electrical performance, ensuring biocompatibility is essential when these cables are used in medical equipment or devices where patient safety is paramount. Here's a closer look at biocompatibility considerations for 250°C high voltage wires and cables:
1. Definition of Biocompatibility:
Biocompatibility refers to the ability of a material to perform its intended function within a specific application, without causing adverse effects on biological systems. In the context of medical devices, biocompatibility ensures that the materials used do not elicit harmful reactions when in contact with living tissues or bodily fluids.
2. Materials Selection:
Insulation Materials: Choose insulation materials for high voltage wires and cables that are known to be biocompatible. Common biocompatible insulation materials include medical-grade silicone rubber, fluoropolymers, and specific thermoplastic elastomers.
Avoidance of Toxic Components: Ensure that the materials used in the cables do not contain toxic substances or additives that could leach out and cause harm.
3. Compliance with Standards:
ISO 10993: Follow guidelines outlined in ISO 10993, which provides a framework for assessing the biological safety of medical devices. Specific parts of ISO 10993 may apply depending on the duration and nature of patient contact with the cables.
USP Class VI: Ensure that cable materials meet the requirements of USP Class VI, which evaluates the potential for biological reactivity of plastics in contact with body tissues.
4. Testing and Evaluation:
Biological Testing: Conduct biocompatibility testing on cable materials to assess cytotoxicity, sensitization, irritation, and other potential biological effects.
Chemical Characterization: Perform chemical characterization studies to identify and quantify any substances that could pose a risk to biological safety.
5. Sterilization Compatibility:
Sterilization Methods: Ensure that high voltage cables can withstand common sterilization methods used in medical environments (e.g., autoclaving, ethylene oxide, gamma irradiation) without compromising biocompatibility or electrical performance.
6. Risk Assessment:
Risk Management: Conduct risk assessments to identify and mitigate potential hazards associated with biocompatibility, considering factors such as duration of patient contact, contact surface area, and intended use of the medical device.
7. Documentation and Regulatory Compliance:
Technical Documentation: Maintain detailed documentation of material specifications, biocompatibility test results, and compliance with relevant regulatory standards.
Regulatory Submissions: Prepare regulatory submissions (e.g., FDA 510(k) for devices in the United States) that include evidence of biocompatibility testing and compliance.
8. Collaboration and Expertise:
Engage Biocompatibility Experts: Work with biocompatibility experts and consultants to ensure thorough evaluation and compliance with applicable standards and regulations.
Cross-functional Collaboration: Foster collaboration between engineering, quality assurance, regulatory affairs, and medical professionals to address biocompatibility considerations holistically.
