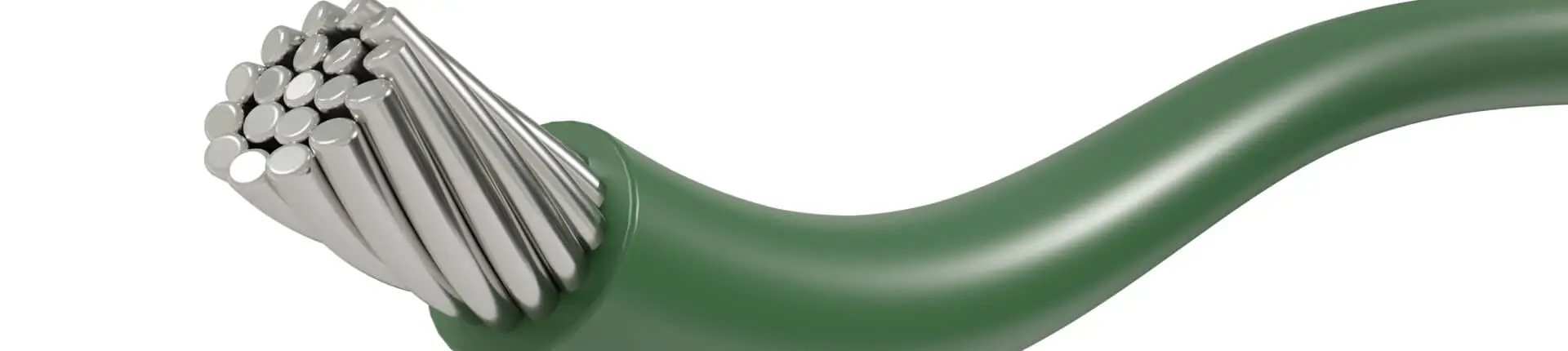

CASFLON™ NEMA HP4 Type KT refers to a different type of wire insulation or coating substance that meets NEMA specifications. The designation specifies the wire's attributes, features, and intended applications.
Type: electrical wire
Core: Silver-plated copper or tin plated copper
Insulation: extruded FEP
Range width: AWG 28 to 8
Options: contact us for more options
Aviation: Electrical lightweight cables used in electronic equipment for aircraft, missile systems or aeronautical test benches
Weather conditions: excellent resistance to UV
Chemical behaviors: excellent resistance to aggressive chemical environments
Humidity: excellent resistance to humidity
Mechanical behaviors: excellent mechanical strength
Operating temperature: SPC: -65°C to +150°C
NPC: -65°C to +200°C
Operating Voltage: 250V
NEMA standard: NEMA HP4 Type K, KK, KT ex. MIL-W-16878/ 11 / 12 / 13
