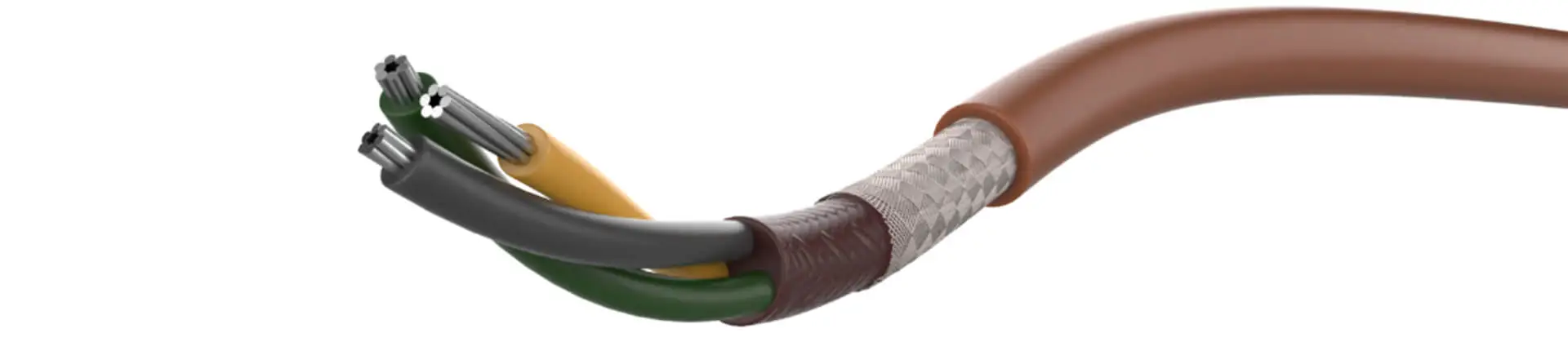

CASLICON™ 200 MC SiHF-C-Si is a specialized type of cable known for its robust construction and suitability for demanding applications, particularly in industrial settings.
Type: silicone multicore cable
Core: tin-plated copper
Core insulation: silicone rubber
Inner sheath: silicone rubber
Braided screen: tinned copper with approx. 85 coverage
Outer jacket: silicone rubber
Production
Range width: AWG 20 to 2
Options: Please consult us for any special requirements
Application
Aircraft construction and ship building: excellent resistance to temperature fluctuations and weather conditions.
Iron and steel works: Silicone-rubber-insulated cables are used in industries dealing with extreme temperatures and weathering
Weather conditions: excellent resistance to UV
Chemical behaviors: extremely excellent resistance to aggressive chemical environments
For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise, the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding 90°C.
Thermal characteristics
Operating temperature: -60°C to +180°C
Electrical characteristics
Operating Voltage: 3/500 V
Test voltage: 2000V
Halogen free: EN 50267-2-2/ IEC 60754-2
Flame retardant: EN 60332-1-2 / IEC 60332-1-2
