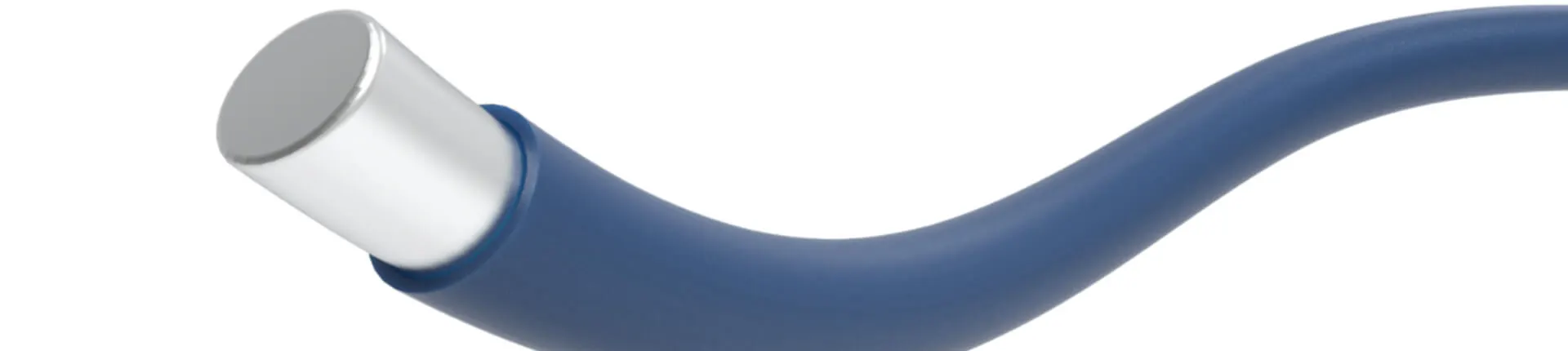

CASPEEK 260
CASPEEK 260 is a CASMO wire & cable for Aerospace. PEEK insulated, -65°C to +260°C, 300V. CASPEEK 260 high-temperature PEEK-insulated wire, -65°C to +260°C, 300V, radiation, chemical, and abrasion resistant.
CASPEEK 260 high-temperature PEEK-insulated wire, -65°C to +260°C, 300V, radiation, chemical, and abrasion resistant.
Key Ratings
- CASPEEK 260: · Temperature -65°C to +260°C · Rated Voltage 300V · Test Voltage 1500V
Construction
- Conductor
- Nickel Plated Copper or Silver Plated Copper · Stranded
- Insulation
- Extruded · PEEK
Characteristics
- Short-Term Peak Temperature: +300°C
- Mechanical & Cut-Through Strength: Semi-crystalline PEEK delivers superior tensile, crush, and abrasion toughness.
- Chemical & Steam Resistance: Withstands hydrocarbons, acids, solvents, and high-pressure steam.
- Radiation, UV & Vacuum Stability: Resists gamma radiation, UV exposure, and ultra-high vacuum outgassing.
Applications
- Solenoid & Actuator Windings: Thin PEEK wall maximizes coil turns and magnetic field density in compact solenoids.
- Downhole, Aerospace & Vacuum: Hook-up and sensor leads for HTHP logging tools, radiation zones, and vacuum chambers.
Standards & Compliance
- Standard: ASTM B355 / ASTM B298 / IEC 60754-2 / UL 94 V-0
- Fire Performance: Flammability Rating: UL 94 V-0
- RoHS: Compliant
- REACH: Compliant
CASPEEK 260
| CASMO Part No. | Conductor Size (AWG) | Cross-Section (mm²) | No. Of Strands | Nom. Strand Dia. (mm) | Nom. Conductor Dia. (mm) | Nom. Ins. Thickness (mm) | Nom. O.D. (mm) | Max. DCR SPC @20°C (Ω/km) | Max. DCR NPC @20°C (Ω/km) | Nom. Cable Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5100126/7-**-XX | 26 | 0.12 | 7 | 0.15 | 0.45 | 0.20 | 0.85 | 150.0 | 157.8 | 1.7 |
| 5100124/7-**-XX | 24 | 0.20 | 7 | 0.20 | 0.60 | 0.25 | 1.10 | 83.7 | 88.0 | 2.9 |
| 5100122/19-**-XX | 22 | 0.35 | 19 | 0.16 | 0.80 | 0.25 | 1.30 | 48.5 | 51.0 | 4.6 |
| 5100120/19-**-XX | 20 | 0.50 | 19 | 0.18 | 0.90 | 0.25 | 1.40 | 38.2 | 40.1 | 5.6 |
| 5100119/19-**-XX | 19 | 0.75 | 19 | 0.23 | 1.15 | 0.25 | 1.65 | 23.2 | 24.4 | 8.6 |
| 5100118/19-**-XX | 18 | 1.0 | 19 | 0.26 | 1.30 | 0.25 | 1.80 | 18.1 | 19.1 | 10.8 |
| 5100117/19-**-XX | 17 | 1.2 | 19 | 0.28 | 1.40 | 0.30 | 2.00 | 15.6 | 16.5 | 12.7 |
| 5100116/19-**-XX | 16 | 1.5 | 19 | 0.32 | 1.60 | 0.30 | 2.20 | 12.0 | 12.6 | 16.2 |
| 5100115/19-**-XX | 15 | 2.0 | 19 | 0.37 | 1.85 | 0.30 | 2.45 | 8.96 | 9.42 | 21.2 |
| 5100114/19-**-XX | 14 | 2.5 | 19 | 0.41 | 2.05 | 0.40 | 2.85 | 7.30 | 7.67 | 26.8 |
| 5100112/37-**-XX | 12 | 4.0 | 37 | 0.37 | 2.60 | 0.40 | 3.40 | 4.62 | 4.86 | 41.2 |
| 5100110/45-**-XX | 10 | 6.0 | 45 | 0.41 | 3.20 | 0.50 | 4.20 | 3.08 | 3.24 | 62.3 |
* Part No. key: "**" = conductor code (NS = nickel-plated copper, standard for 260°C; SS = silver-plated copper, up to 200°C). "XX" = colour code (NT = Natural Tan/Amber, standard; custom colours on request).
