It is appropriate for a wide range of EV charging applications, including as public charging stations, household installations, and commercial fleets.

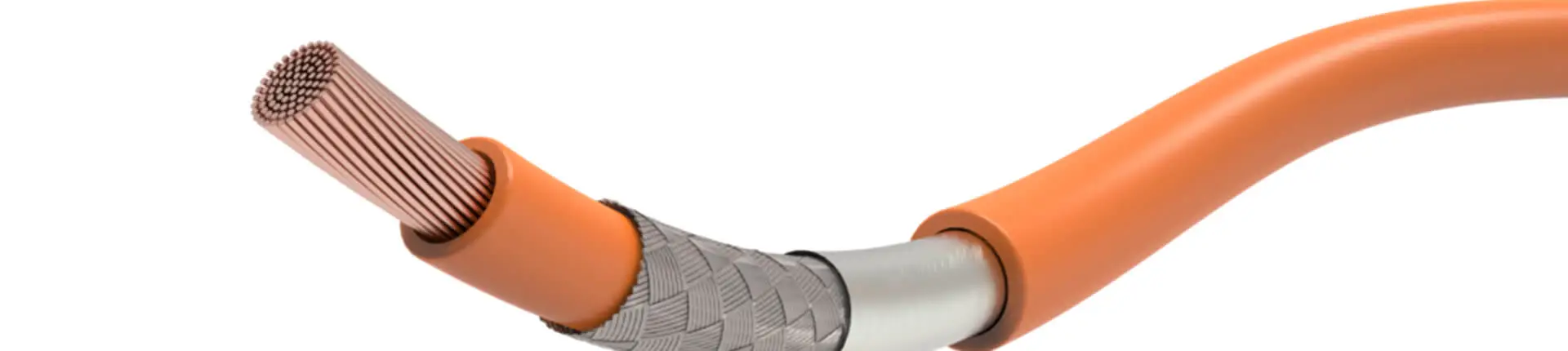

Type: high voltage shielded automotive cable
Core: flexible or extra flexible bare, tin-plated, copper
Insulation: silicone rubber
Electrical screen: aluminum tape
Shielding: tin-plated copper braid
Sheath: silicone rubber
Production
Range width: 1.5 / 2.5 / 4 / 6 / 10 / 16 / 25 / 35 / 50 / 70 / 95 / 120 mm²
Options: Please consult us for any special requirements
Application

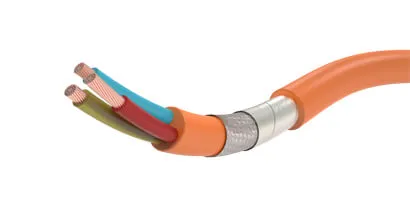

Automotive: high voltage multicore cables for e-mobility power applications. Several benefits: high flexibility, high-temperature resistance, halogen-free, flame retardant, and dual shielding. The best product for your electrical power train of hybrid and electrical vehicles.
Operating environment: good resistance to thermal shock
Weather conditions: good resistance to UV
Chemical behaviors: good resistance to aggressive chemical environments
Humidity: excellent resistance to humidity
Mechanical behaviors: excellent flexibility
Thermal characteristics
Continuous operating temperature: -40°C to +180°C, Class E according to ISO 6722-1
Electrical characteristics
Operating Voltage: 600 VAC / 900 VDC, 1000 VAC / 1500 VDC
Test voltage: 5000V
Automotive: ISO 6722-1, LV216-2
Halogen free: IEC 60754-2 / EN 60754-2
