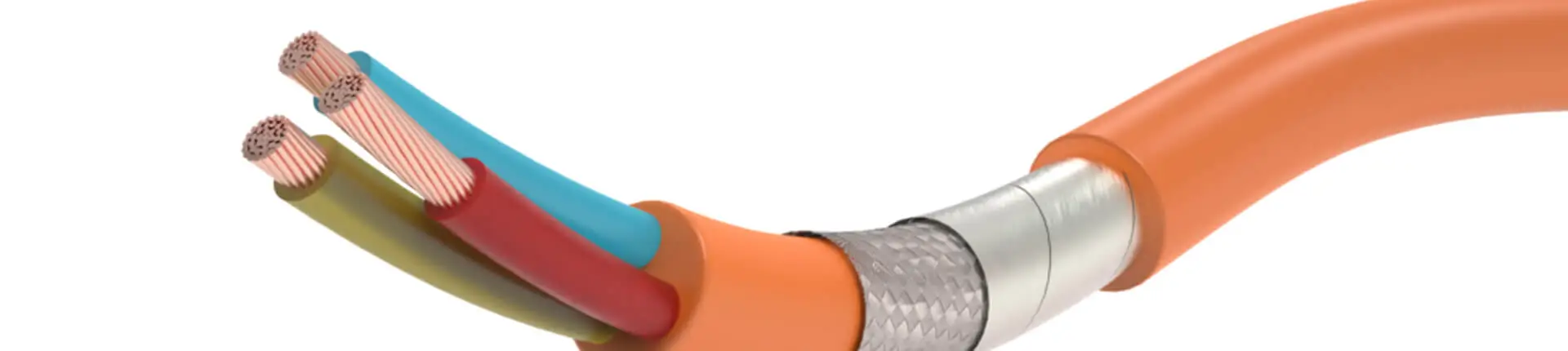

CASUSTAN™ EV MC FHLR2GCB2G

Type: high voltage shielded and multicore cable
Core: flexible or extra flexible bare copper
Insulation: silicone rubber
Electrical screen: aluminum/PET tape
Shielding: tin-plated copper braid
Sheath: silicone rubber
Sheath color: orange

Production

Range width: 1.5 / 2.5 / 4 / 6 mm², with 2 / 3 / 4 / 5 conductors (other cross sections or constructions on request)

Options: Please consult us for any special requirements

Application

Automotive: high voltage multicore cables for e-mobility power applications. Several benefits: high flexibility, high-temperature resistance, halogen-free, flame retardant, and dual shielding. The best product for your electrical power train of hybrid and electrical vehicles.

Operating environment: good resistance to thermal shock
Weather conditions: good resistance to UV
Chemical behaviors: good resistance to aggressive chemical environments
Humidity: excellent resistance to humidity
Mechanical behaviors: excellent flexibility

Thermal characteristics

Continuous operating temperature: -40°C to +180°C

Electrical characteristics

Operating Voltage: 600 VAC / 900 VDC, 1000 VAC / 1500 VDC

Test voltage: 5000V
