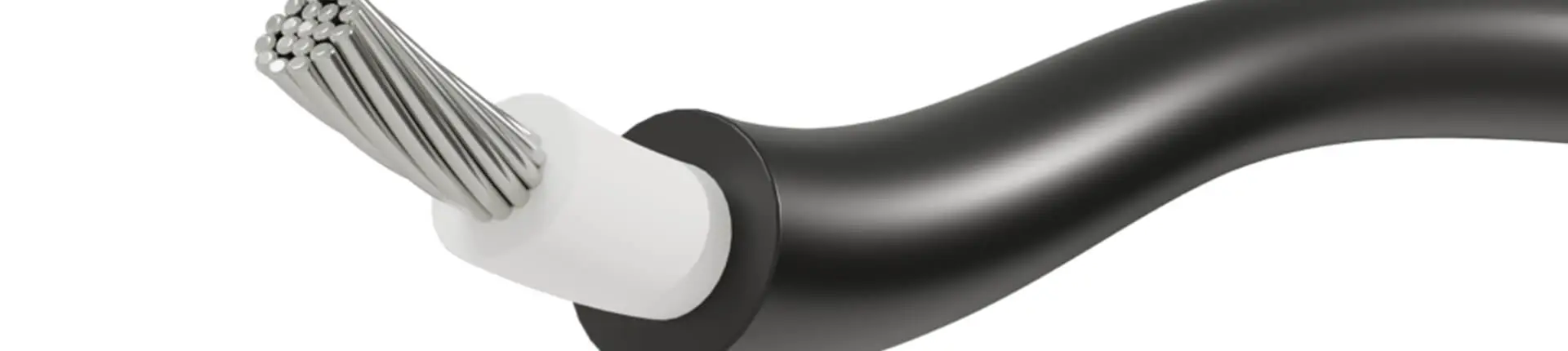

CASUSTAN™ PV H1Z2Z2-K cable is designed to meet the rigorous demands of solar power systems, providing reliable electrical connectivity while withstanding outdoor environmental conditions.
Sheath: cross-linked LSZH compound
Color of outer cable sheath: black or optional
Production
Standard: 1.5 to 240 mm² (other cross sections or constructions on request)
Options: Please consult us for any special requirements
Application
General use: ideal for use in Photovoltaic (PV) Systems, in particular for installation at the Direct Current (DC.) side. These cables are suitable for permanent outdoor use for many years under variable demanding climate conditions. Relatively stringent requirements are set for these products in line with the expected harsh usage conditions.
Others: maximum current rating as per EN 50618
Thermal characteristics
Continuous operating temperature: -40°C to +90°C
Electrical characteristics
OperatingVoltage: 1.0 / 1.0 kV A.C, 1.5 / 1.5 kV D.C.
Test voltage: 6.5 kV A.C. – 15 kV D.C.
