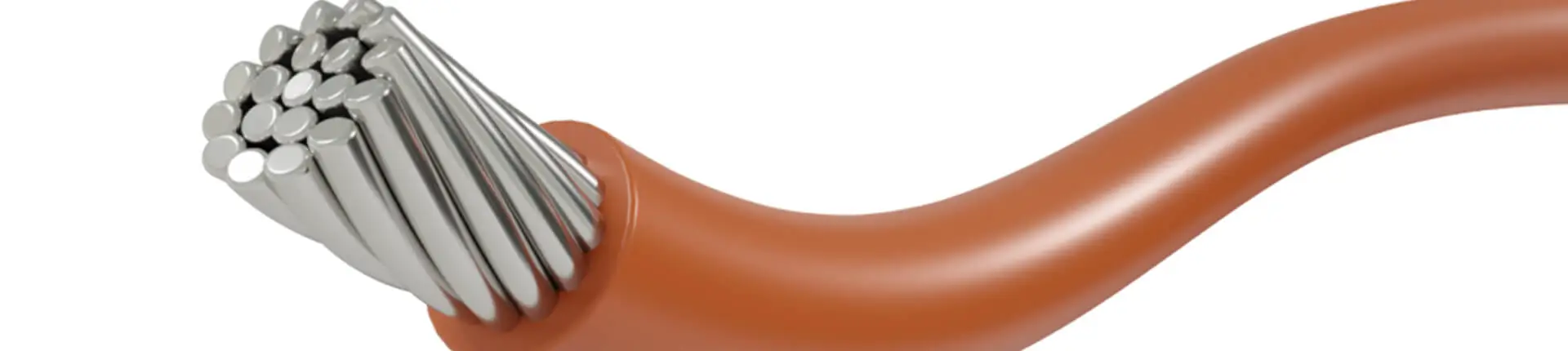

CASVOLT™ 250 UL/cUL Style 1911 is a specific type of cable designed for electrical applications, known for its robust construction and reliability.
Type: electrical wire
Core: bare, tin-plated, nickel-plated or silver-plated copper
Insulation: PFA
Production
Range width: AWG 24 to 10
Options: Please consult us for any special requirements
Application
General use: ignition circuit and creation of an electric arc for gas or oil burners for boilers and professional appliances
Household appliances: ignition circuit and creation of an electric arc for piezo-electric components in household electrical appliances
Weather conditions: excellent resistance to UV
Chemical behaviors: excellent resistance to aggressive chemical environments
Humidity: excellent resistance to humidity
Mechanical behaviors: excellent mechanical strength
Thermal characteristics
Operating temperature: -65°C to +250°C
Electrical characteristics
Operating Voltage:5KV-50KV
Test voltage: according to the operating voltage
“Horizontal flame”: as per UL approval
UL approval: as per standard UL 758
