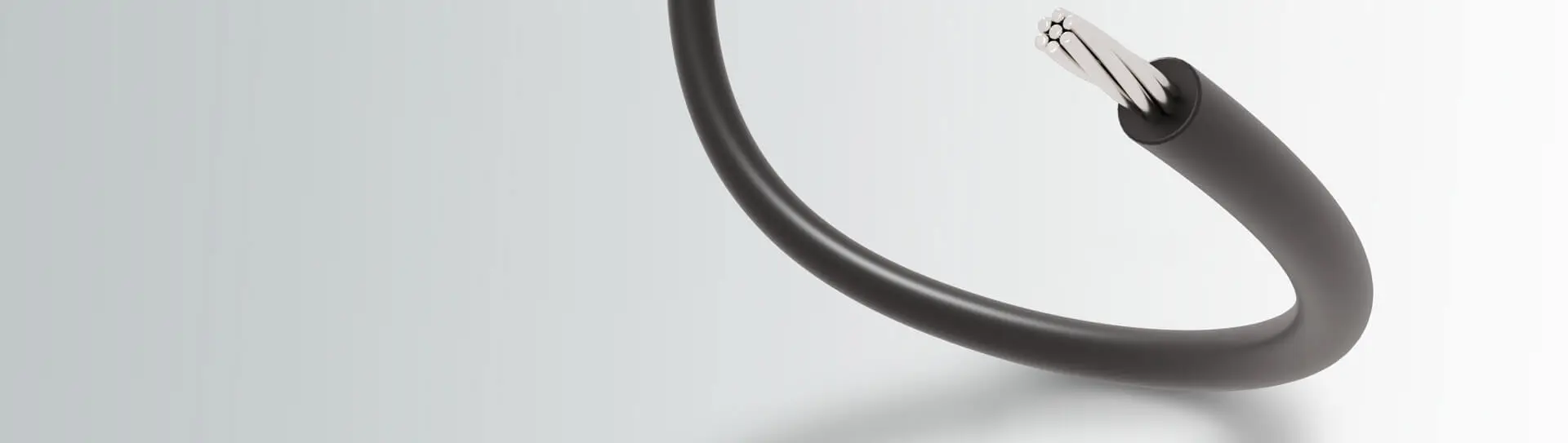

Silicone wires and cables offer superior flexibility and durability, ideal for various applications including electronics, automotive, and aerospace industries. With excellent thermal stability and resistance to extreme temperatures, they ensure reliable performance in demanding environments. Trusted for their safety and reliability, silicone wires are a top choice for critical electrical systems.
Automotive Industry: Silicone wires are commonly used in automotive wiring harnesses, engine compartments, and battery systems due to their high temperature resistance and durability.
Aerospace and Defense: Silicone cables are used in aerospace applications for avionics, communication systems, and aircraft wiring where lightweight and high temperature resistance are essential.
Industrial Equipment: Silicone wires and cables find applications in industrial machinery, heating equipment, sensors, and control systems where reliability in harsh conditions is required.
Medical Devices: Silicone cables are used in medical equipment and devices, such as patient monitoring systems, diagnostic instruments, and surgical tools, due to their biocompatibility and flexibility.
Renewable Energy: Silicone cables are used in solar panels and wind turbines to connect electrical components in outdoor installations where exposure to weather conditions is a concern.
1. High Temperature Resistance:
Silicone wires and cables can withstand a wide range of temperatures, typically from -50°C to +200°C (-58°F to +392°F) or higher, depending on the specific formulation. This high temperature resistance makes them ideal for applications where exposure to heat is a concern, such as in automotive, aerospace, and industrial environments.
2. Flexibility and Durability:
Silicone insulation is inherently flexible and retains its flexibility even at low temperatures, unlike some other materials that may become stiff or brittle. This flexibility enables easier installation and routing in tight spaces without risk of insulation cracking or breaking.
3. Excellent Electrical Properties:
Silicone offers good electrical insulation properties, including high dielectric strength and low power loss. This makes silicone wires and cables suitable for electrical applications where insulation integrity is crucial.
4. Chemical and Weather Resistance:
Silicone is resistant to a wide range of chemicals, oils, solvents, and UV exposure, making silicone wires and cables suitable for outdoor and harsh environment applications. They can withstand exposure to moisture and humidity without degradation.
5. Non-Toxic and Flame Retardant:
Silicone is a non-toxic material and inherently flame retardant, offering enhanced safety in applications where fire resistance is important. Silicone wires and cables typically meet UL (Underwriters Laboratories) and other industry standards for flame resistance.
6. Abrasion Resistance:
Silicone insulation provides good resistance to abrasion and mechanical wear, extending the lifespan of the cables in demanding industrial applications.
7. Color Options and UV Stability:
Silicone wires and cables are available in a variety of colors for easy identification and wiring organization. Silicone also exhibits good UV stability, making it suitable for outdoor applications without color fading or degradation.
Silicone Rubber Insulation:
The primary material used in silicone wires and cables is silicone rubber, which serves as the insulation layer surrounding the conductor. Silicone rubber offers exceptional thermal stability, flexibility, and resistance to heat, making it suitable for applications requiring high temperature resistance. Silicone rubber can withstand temperatures ranging from -50°C to +200°C or higher, depending on the formulation.
Copper Conductors:
The conductor inside silicone wires and cables is typically made of high-purity copper or tinned copper. Copper is chosen for its excellent electrical conductivity and compatibility with silicone insulation. Tinned copper conductors offer improved corrosion resistance and durability.

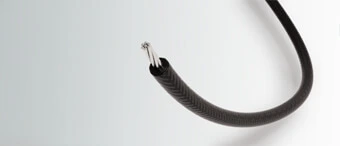

Fiberglass Braid (Optional):
Some silicone cables may feature a fiberglass braid layer underneath the silicone insulation for added mechanical strength and abrasion resistance. The fiberglass braid enhances the cable's durability and flexibility, especially in rugged environments.

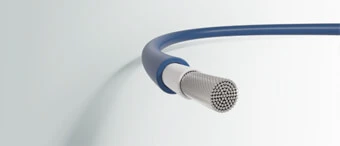

Braided Shielding (Optional):
For applications requiring electromagnetic interference (EMI) shielding, silicone cables may include a braided shielding layer made of tinned copper or aluminum. The shielding layer helps minimize signal interference and improves overall cable performance in electrically noisy environments.
Silicone Jacket/Sheath:
The outer layer of silicone wires and cables is typically a silicone jacket or sheath that provides additional protection and insulation. Silicone jackets are flexible, durable, and resistant to chemicals, oils, UV radiation, and moisture. They contribute to the overall robustness and longevity of silicone cables.
Fillers and Additives:
Silicone rubber used in wires and cables may contain fillers and additives to enhance specific properties. Common additives include heat stabilizers, flame retardants, antioxidants, and processing aids. These additives improve thermal stability, flame resistance, and overall performance of silicone cables.
